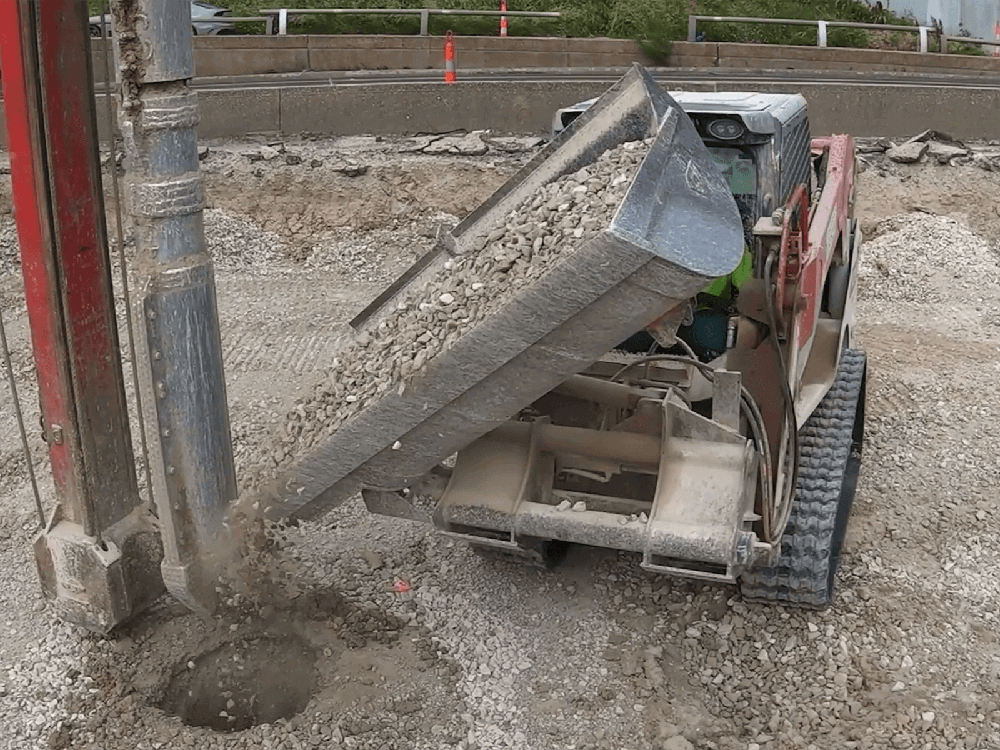

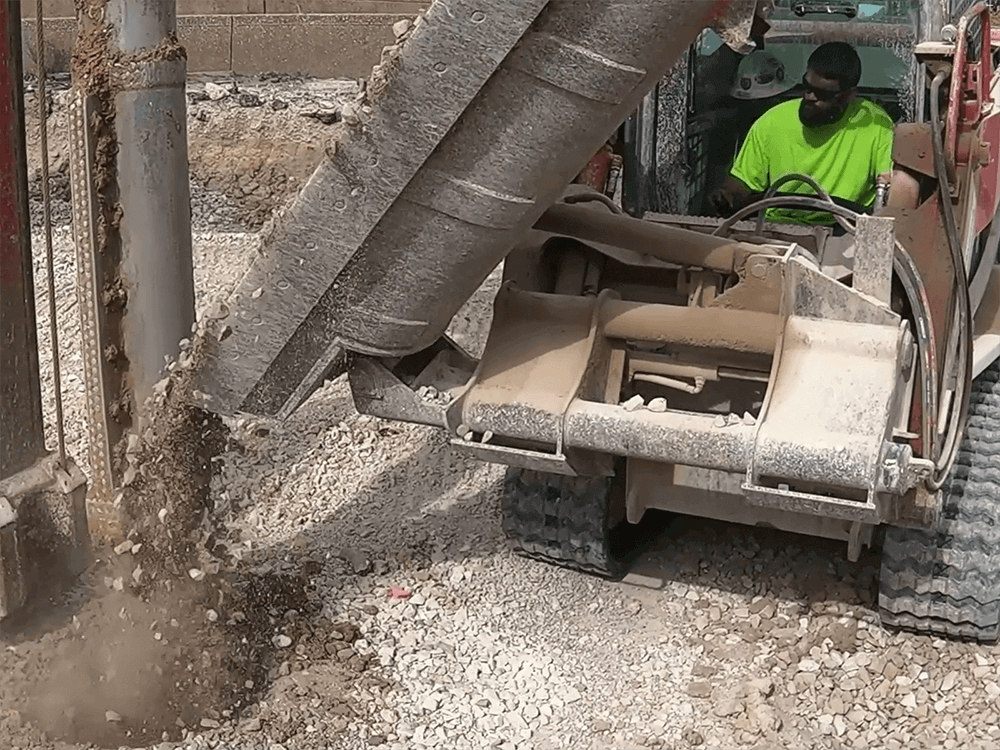

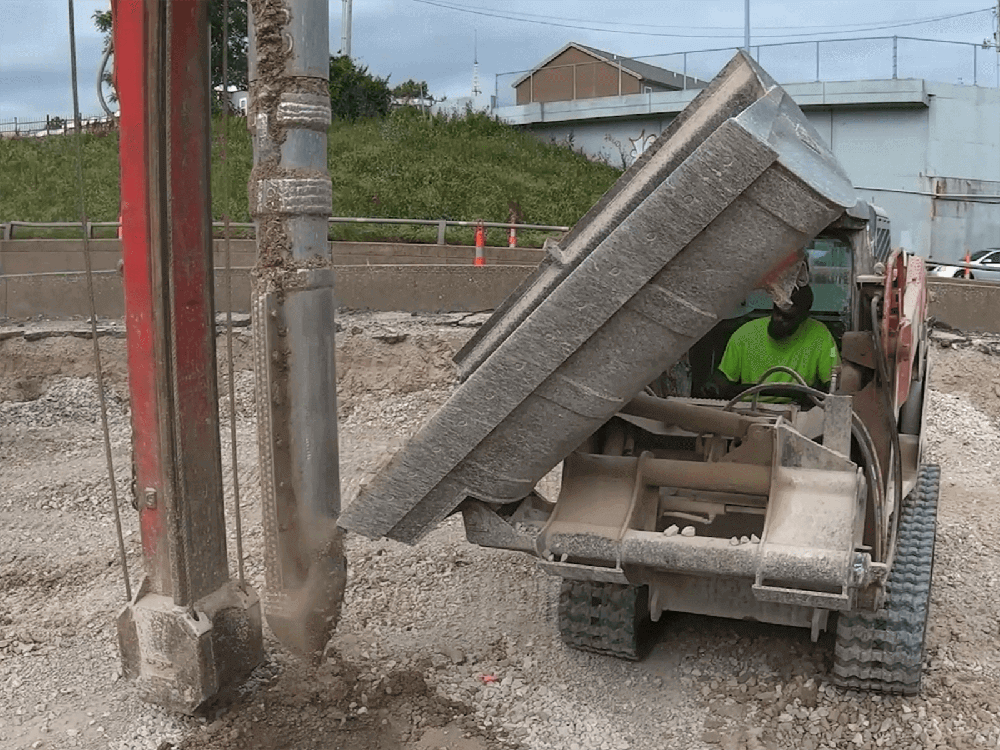

Maxx Side Dump Buckets are designed to work in sand, gravel, loose dirt, and rock.
Maxx Side Dump Buckets are ideal for such diverse applications as tunnel construction, building levees, filling trenches and demolition of asphalt roadways and is designed to work in sand, gravel, loose dirt, and rock.

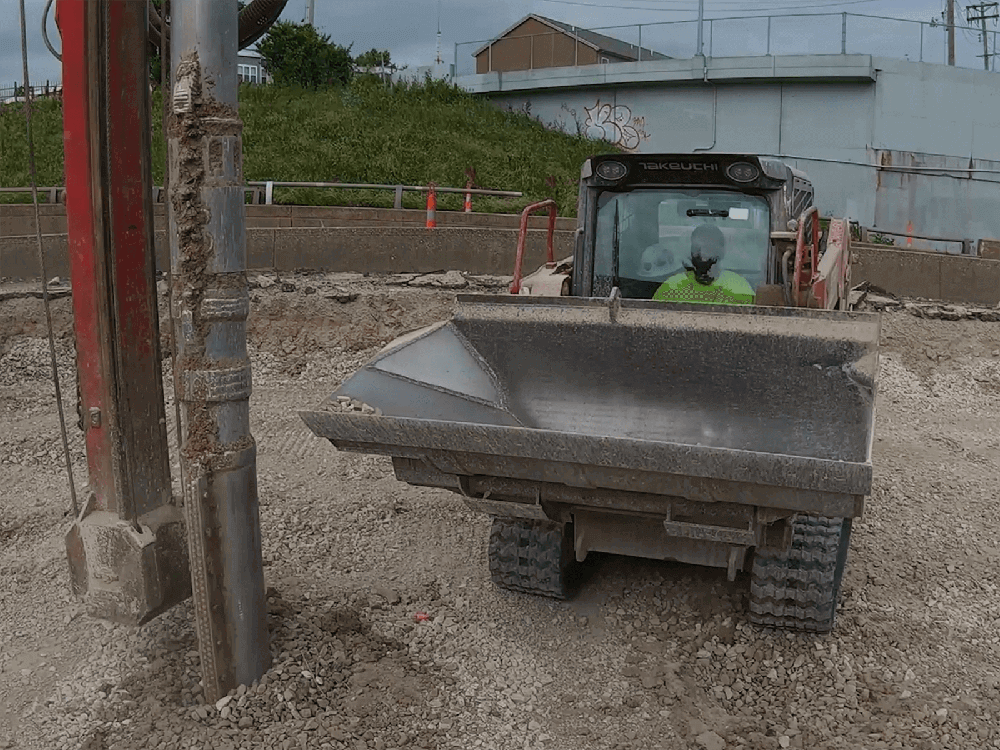

Perfect for operating in congested work sites and hard-to-maneuver work areas, this unique bucket can also dump forward for use as a conventional bucket.
Maxx Side Dump Buckets for skid steers are offered with three different size buckets and can be built with either a left side dump or right side dump.
Scroll to see more information »
5643D1
0.60 cyd capacity Side Dump Bucket - Left or Right
1250lbs / 567kg
3.5” Bore, 2.0” Rod, 18” Stroke
1/4"
5946D2
0.74 cyd capacity Side Dump Bucket - Left or Right
1330lbs / 603kg
3.0” Bore, 1.75” Rod, 18” Stroke
1/4"
5964D1
1.12 cyd capacity Side Dump Bucket - Left or Right
1490lbs / 676kg
3.5” Bore, 2.0” Rod, 18” Stroke
1/4"
Specifications are subject to change without notice*
