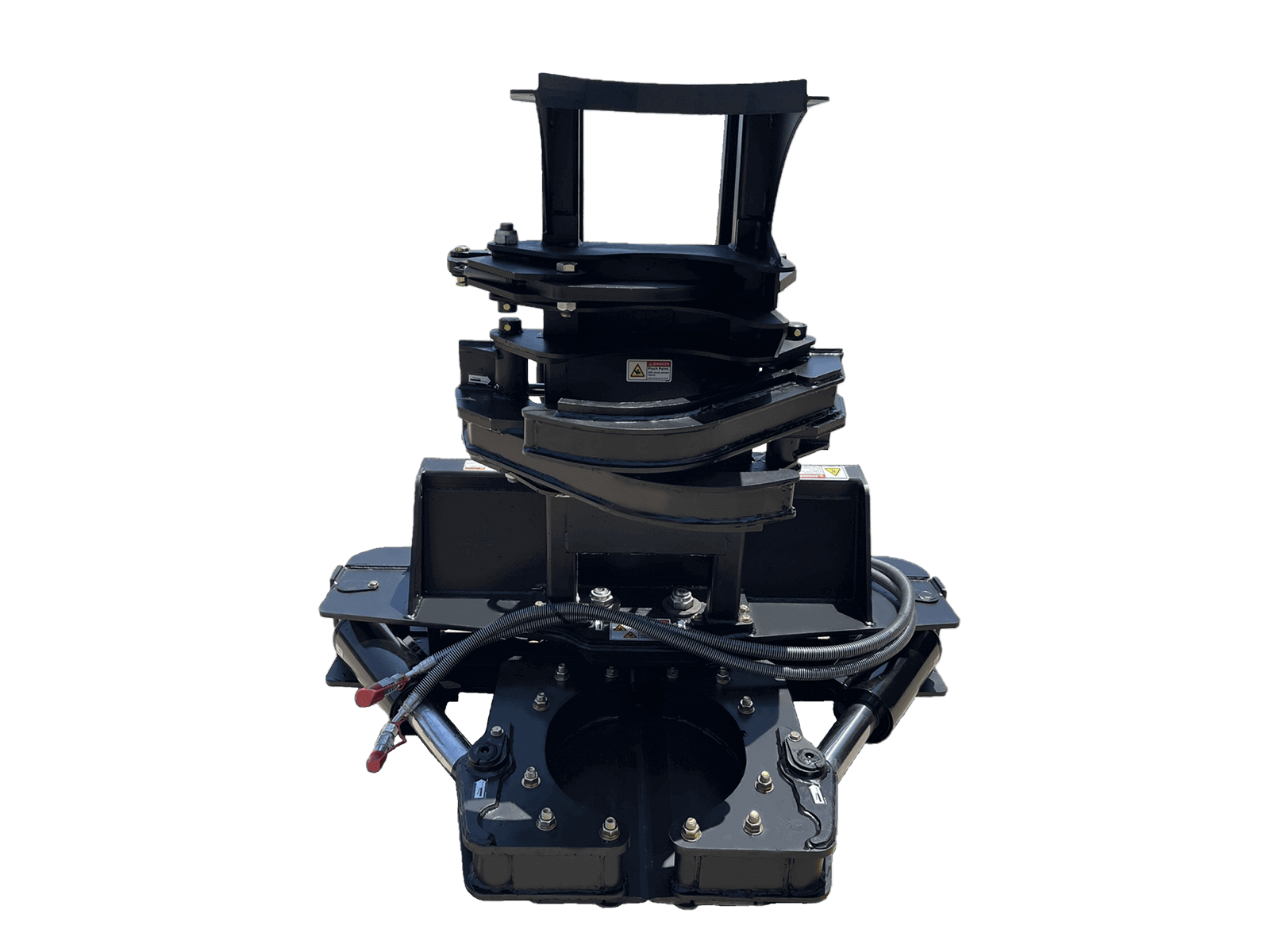

Available in grapple and bunching models, the 14″ & 16″ Forestry Timberwolf Tree Shears for skid steers are the best choice for forest harvesting shears.
Available in grapple and bunching models, the Maxx 14″ & 16″ Forestry Timberwolf Tree Shears for skid steers are the best choice for forest harvesting shears.
Sharp, 3/4″ AR400 milled knife edges cut through trees with ease. Blade adjustment and replacement is simple and easy.
The Maxx Timberwolf hydraulic system features larger lines, reduced pressure loss and a larger rod diameter in the shear cylinder. Hoses are routed internally and are protected from the abusive elements inherent in tree shearing operations. These integrated elements of the hydraulic system yield a 33% increase in shear speed, making the Timberwolf the fastest shear available today.
The Maxx Timberwolf features a new, improved cylinder with a 5″ barrel and 3″ rod. When added to the engineered frame and shear arm structure, the Timberwolf provides the highest shearing power ratio in the marketplace.
Scroll to see more information »
Model #
3472D9
7021D4
3474D9
7378D1
Weight
2,150 lbs / 976 kg
2,450 lbs / 1,112 kg
2,250 lbs / 1,020 kg
2,550 lbs / 1,156 kg
Minimum Machine Operating Capacity Required
3,000 lbs
3,400 lbs
3,000 lbs
3,400 lbs
Height (in.)
60″
60″
60″
60″
Overal Width (in.)
66″
66″
66″
66″
Overall Depth (in.)
46″
46″
48″
48″
Shear Blade Material
3/4″ AR400 milled knife edges
3/4″ AR400 milled knife edges
3/4″ AR400 milled knife edges
3/4″ AR400 milled knife edges
Tower Material
A-572
A-572
A-572
A-572
Hydraulics
Max Pressure 3,000 psi.
Flow Rates (min-max) – 15-30 gpm.
Includes hoses to machine lines with standard flow, quick disconnects (flat face couplings).
Max Pressure 3,000 psi.
Flow Rates (min-max) – 15-30 gpm.
Includes hoses to machine lines with standard flow, quick disconnects (flat face couplings).
Max Pressure 3,000 psi.
Flow Rates (min-max) – 15-30 gpm.
Includes hoses to machine lines with standard flow, quick disconnects (flat face couplings).
Max Pressure 3,000 psi.
Flow Rates (min-max) – 15-30 gpm.
Includes hoses to machine lines with standard flow, quick disconnects (flat face couplings).
Specifications are subject to change without notice*
